Cable Assemblies

Low Noise Accelerometer Cables & Coaxial Sensor Cables

COLOURED Cables available for easy channel identification!!

Our cable assembly team in the UK produce the highest quality cable assemblies for use with a wide range of sensing and measurement applications. By making the cable assemblies in our own factory we are able to ensure the quality of every connection and every assembly, each cable is fully tested and its capacitance checked. Due to our experience in signal conditioning we understand the critical elements to quality signal analysis, this includes the correct cable. This is particularly true for accelerometer cables and sensors cables which can introduce significant noise issues if not used correctly.

The connectors we supply are fully compatable with all accelerometer manufacturer products including PCB Piezotronics Inc., Endevco, Dytran, B&K (HBK), DJB Instruments (UK) Ltd, Meggit Sensing Systems, TE, MMF and all other global manufacturers.

We have a range of stock cable assemblies available for same day or next day shipping (subject to requirement). In addition to our stock cables we are able to supply custom cable lengths to suit your applications, using only the best quality connectors and cable which is manufactured specifically for Kemo Ltd to our own specifications.

Our low noise (triboelectric) cable is ideal for use with charge output devices such as accelerometers, pressure sensors and other devices creating an elctrical charge output which can be affected by motion induced noise within the cable. For more details on triboelectric noise, visit our technical library for more details.

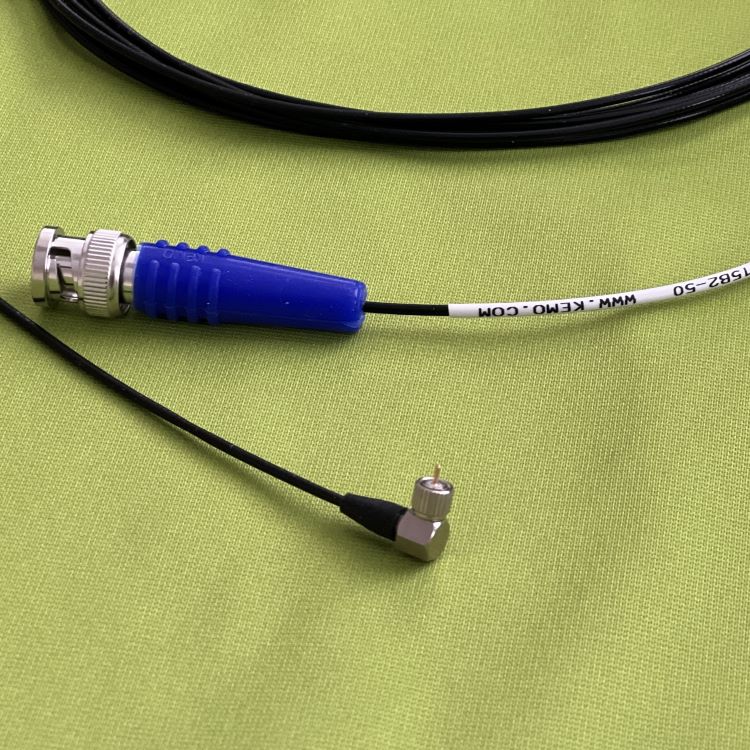

All our cable assemblies have their part number on them and the strain relief boots are colour coded to indicate the type of cable, Kemo blue for Low Noise Triboelectric and Green boots for standard screened coaxial cable. Our low triboelectric noise cable is also printed with ‘low noise cable’ along its entire length to aid identification.

Low outgassing cables for Satellite and Space applications are als0 part of Kemo’s range. Our standard cable stock meets all the requirements for vacuum applications in space, with only minor changes to the strain relief required on connectors we can ensure the full assembly meets all low outgassing requirements, for more details download our Application note here – DOWNLOAD

Connectors available, plugs and sockets, including some right angle options:

10/32UNF Microdot, M5 Microdot, BNC, TNC, SMA, SMB, SMC, Lemo® Connectors, 1/4-28UNF 4 pin

Our typical stock cables include the following, however cables of any length are available to Order

In addition to cable assemblies we can also suply raw cable stock and connectors for self assembly, visit our Connectors page for more details. We also have a wide range of cable joiners and bulkhead connectors visit our joiners page for more details.

Monoaxial Accelerometer Cable Assemblies – any cable length available

3m low noise cable assembly

1A2-30

3m low noise cable assembly

10/32UNF microdot plug to BNC plug

DOWNLOAD Datasheet

3m low noise cable assembly

1A2-50

5m low noise cable assembly

10/32UNF microdot plug to BNC plug

DOWNLOAD Datasheet

3m low noise cable assembly

1B2-30

3m coaxial cable assembly

10/32UNF microdot plug to BNC plug

DOWNLOAD Datasheet

Coaxial IEPE accelerometer cable

1B2-50

5m coaxial cable assembly

10/32UNF microdot plug to BNC plug

DOWNLOAD Datasheet

3m low noise cable assembly

1A1-30

3m low noise cable assembly

10/32UNF microdot plug to 10/32UNF microdot plug

DOWNLOAD Datasheet

3m low noise cable assembly

1A1-50

5m low noise cable assembly

10/32UNF microdot plug to 10/32UNF microdot plug

DOWNLOAD Datasheet

3m low noise cable assembly

1B1-30

3m coaxial cable assembly

10/32UNF microdot plug to 10/32UNF microdot plug

DOWNLOAD Datasheet

3m low noise cable assembly

1B1-50

5m coaxial cable assembly

10/32UNF microdot plug to 10/32UNF microdot plug

DOWNLOAD Datasheet

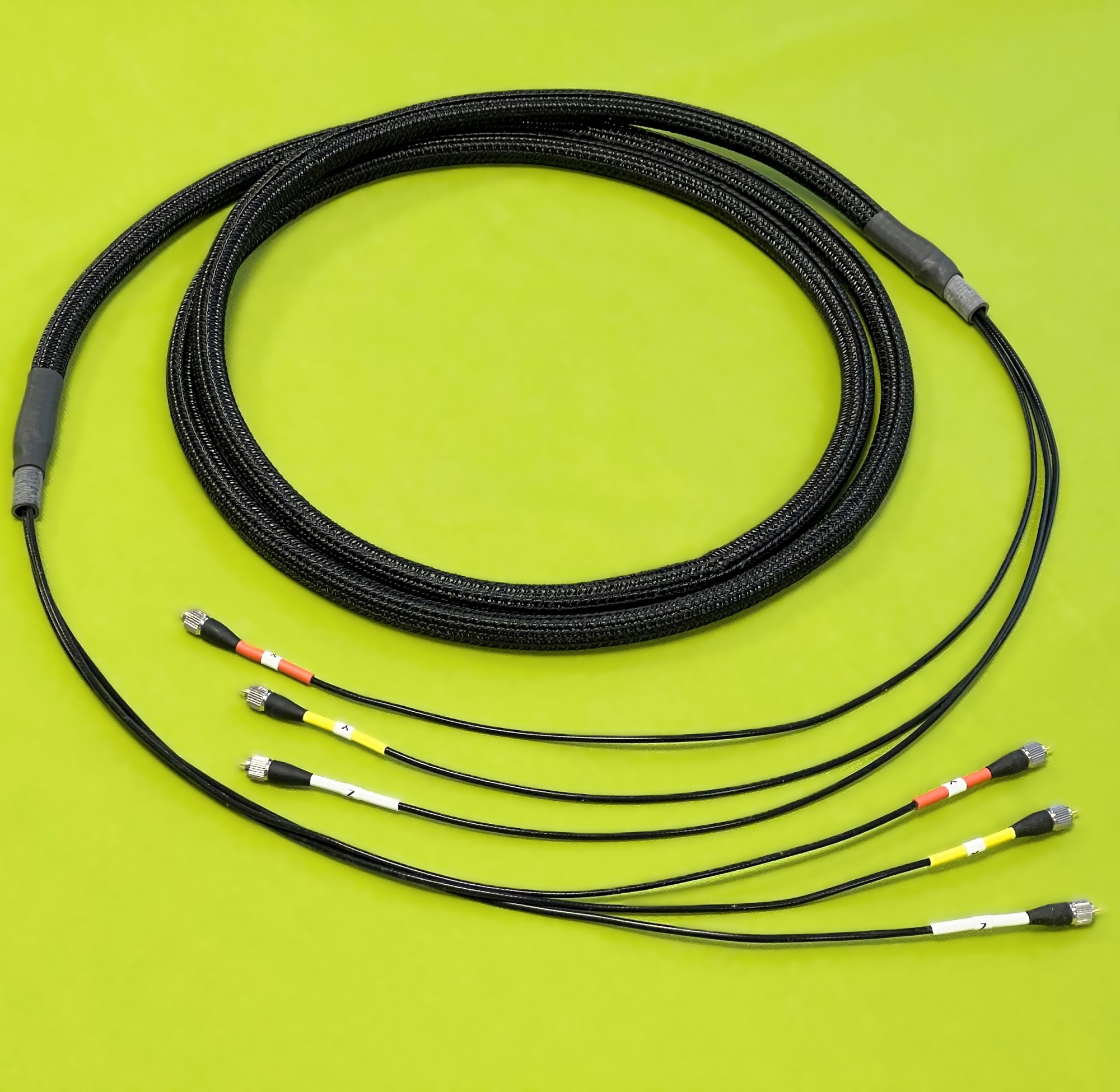

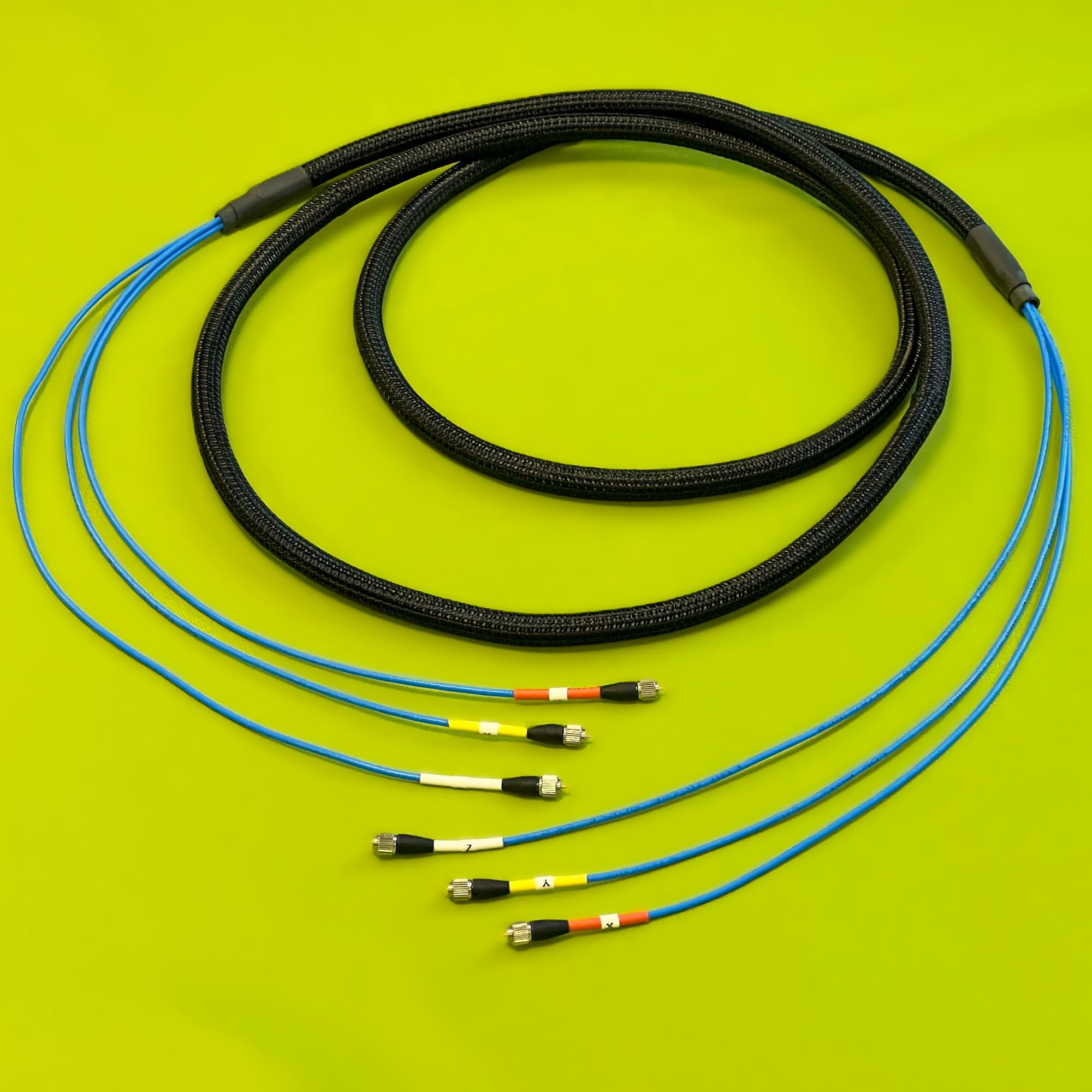

Coloured Accelerometer cables

Coloured Cable Identification

Do you struggle to identify which channel is which when setting up your tests? Kemo Ltd offers a unique colour coding system along with numbers to identify channels, contact us for details.

COLOURS Make it Easy!!

DOWNLOAD DETAILS

Triaxial Accelerometer Cable Assemblies – any cable length available

3m low noise cable assembly

7F82-30

3m Triaxial Accelerometer Cable

1/4-28UNF 4 pin connector to 3 x BNC plug

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

3m low noise cable assembly

7F82-50

5m Triaxial Accelerometer Cable

1/4-28UNF 4 pin connector to 3 x BNC plug

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

3m low noise cable assembly

12F82-30

3m Triaxial Accelerometer Cable

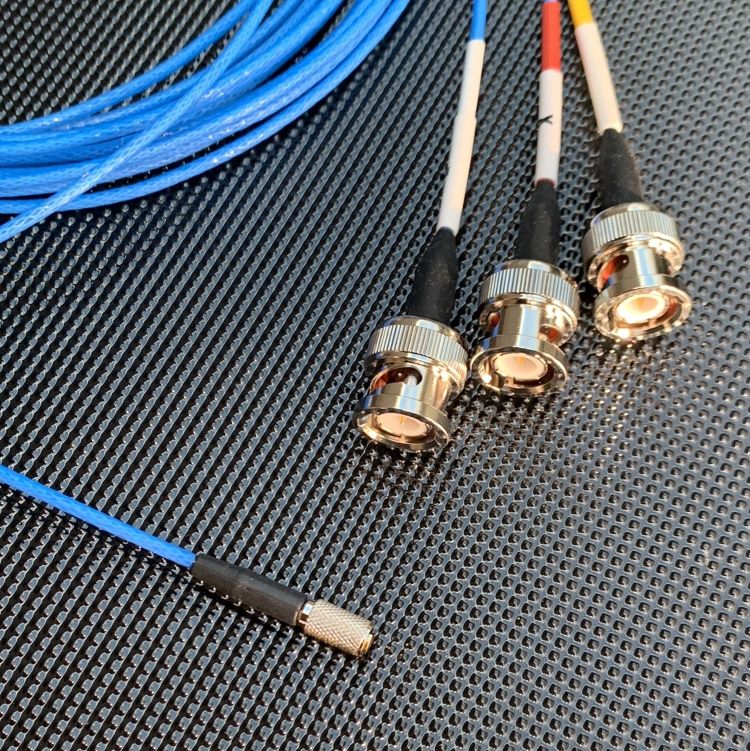

Miniature 8-36 4 pin connector to 3 x BNC plug

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

3m low noise cable assembly

12F82-50

5m Triaxial Accelerometer Cable

Miniature 8-36 4 pin connector to 3 x BNC plug

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

3m low noise cable assembly

7FL9-50

5m Triaxial Accelerometer Cable

1/4-28UNF 4 pin connector to 9 pin Lemo®

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

3m low noise cable assembly

7F81-30

3m Triaxial Accelerometer Cable

1/4-28UNF 4 pin connector to 3 x 10/32UNF microdot plugs

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

3m low noise cable assembly

7F81-50

5m Triaxial Accelerometer Cable

1/4-28UNF 4 pin connector to 3 x 10/32UNF microdot plugs

Compatible with triaxial accelerometers from a range of manufacturers.

DOWNLOAD Datasheet

Extension Cables, microphones, DAQ, Sensors – Any length available

3m low noise cable assembly

2G2-50

5m Extension Cable

BNC plug to BNC plug

Kemo RG174 PVC 2.8mm diameter cable

DOWNLOAD Datasheet

3m low noise cable assembly

2G2-100

10m Extension Cable

BNC plug to BNC plug

Kemo RG174 PVC 2.8mm diameter cable

DOWNLOAD Datasheet

Raw cables and connectors also available as cable assemblies

3m low noise cable assembly

KM-1

Microdot plug fitted to Kemo cable assemblies

DOWNLOAD Datasheet

3m low noise cable assembly

KMR-1

Microdot right angle plug fitted to Kemo cable assemblies

DOWNLOAD Datasheet

3m low noise cable assembly

KMS-1

Microdot socket fitted to Kemo cable assemblies

DOWNLOAD Datasheet

3m low noise cable assembly

KBNC-P

BNC Plug with strain relief boot fitted to Kemo cable assemblies

(Blue boot – Low Noise)

(Green boot – coaxial IEPE)

DOWNLOAD Datasheet

3m low noise cable assembly

KBNC-S

BNC Socket with strain relief boot fitted to Kemo cable assemblies

(Blue boot – Low Noise)

(Green boot – coaxial IEPE)

DOWNLOAD Datasheet

3m low noise cable assembly

KSMA-P

SMA plug fitted to Kemo cable assemblies

DOWNLOAD Datasheet

3m low noise cable assembly

KSMB-S

SMB socket fitted to Kemo cable assemblies

DOWNLOAD Datasheet

3m low noise cable assembly

KLNCAB2

Low triboelectric noise cable for use with charge output accelerometers and other sensors.

High Temperature +260°C

DOWNLOAD Datasheet

3m low noise cable assembly

KNCAB2

Coaxial screened cable for IEPE and general instrumentation

High temperature +200°C

DOWNLOAD Datasheet

3m low noise cable assembly

KN4CAB2

4 Core cable for use with triaxial accelerometers

High temperature +200°C

FEP Jacket, ∅nom.2.3mm

DOWNLOAD Datasheet

3m low noise cable assembly

KN4CAB3

4 Core cable for use with triaxial accelerometers

Increased flexibility

PVC jacket ∅nom.2.8mm

DOWNLOAD Datasheet

3m low noise cable assembly

KLNCAB1

Lightweight Low triboelectric noise cable for use with miniature charge output accelerometers and other sensors.

High Temperature +230°C

DOWNLOAD Datasheet

3m low noise cable assembly

KNCAB1

Lightweight coaxial screened cable for IEPE and general instrumentation

High temperature +200°C

DOWNLOAD Datasheet

3m low noise cable assembly

KNCAB3

2.8mm PVC jacket general purpose coaxial cable for use as extension cable

High temperature +85°C

DOWNLOAD Datasheet

3m low noise cable assembly

KNCAB5

5mm general purpose PVC jacket cable for use as extension cables

High temperature +60°C

DOWNLOAD Datasheet
