Enhancing Signal Quality: Charge Amplifiers and Signal Conditioning for Piezoelectric Accelerometers.



Charge amplifiers and signal conditioning play crucial roles in optimizing the performance of dynamic devices such as piezoelectric accelerometers, hydrophones, microphones and other similar sensors. Piezoelectric sensors are widely utilized across various industries for their durability and ability to withstand high temperatures. Fundamentally a piezoelectric accelerometer or other sensor will output a signal without the need for any internal electronics, making them perfect for a wide range of challenging dynamic measurement conditions. Mastering the technology for charge to voltage conversion and amplification is essential for obtaining accurate, noise-free signals from these sensors.

One of the key factors with charge amplifier design is ensuring a low noise floor within the electronics to minimise issues when applying signal amplification. Our lineup of charge amplifiers is engineered to deliver minimal noise amplification while accommodating diverse package configurations, catering to applications ranging from industrial condition monitoring to field and laboratory testing.

One of the little understood issues of using piezoelectric sensors is triboelectric noise, this is caused by cable movement generating additional charge within the cable due to cable layers rubbing together. This can be minimized using low noise cables, Kemo offer a range of high-quality low noise cable assemblies which provide the highest level of reduction in triboelectric noise.

At Kemo, we offer comprehensive training programs focused on noise reduction techniques and the selection of appropriate cables to mitigate triboelectric noise associated with piezoelectric accelerometer outputs. We also have a very useful video on our Youtube page which shows how low noise cables can reduce triboelectric noise.

For more complex signal conditioning needs, where noise from cables, external sources or installation cannot be removed by good engineering practice, some of our charge amplifiers are equipped with integrated filters. This provides the perfect elimination of noise at the appropriate affected frequencies. Additionally, we provide versatile instruments that combine charge and IEPE amplifiers in a single unit, offering enhanced flexibility and convenience.

DIN Rail Filter

DR1000-C

DIN Rail Mounting Charge Amplifier – also features IEPE signal conditioning. a compact and versatile single channel amplifier with advanced features including adjustable IEPE supply, usually available from stock.

DATASHEET Download

IEPE Amplifier range Charge Amplifiers

3X-C

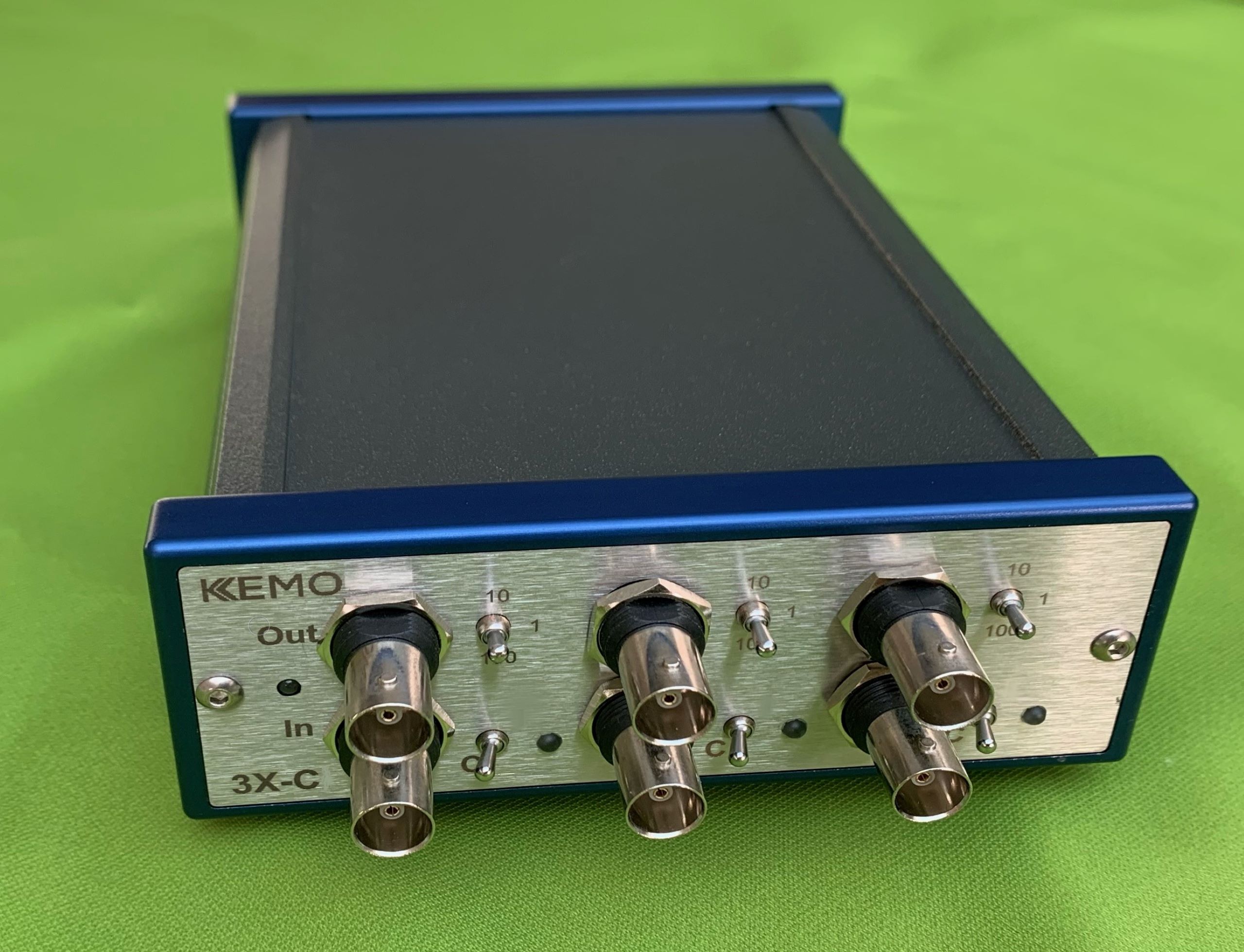

3 channel charge amplifier with x1, x10 and x100 gain individually selectable per channel. DC powered for ease fo use in the field or laboratory

DATASHEET Download



IEPE Amplifier range Charge Amplifiers

3X-CI

3 channel charge/IEPE amplifier with x1, x10 and x100 gain individually selectable per channel. Each channel can be switched from Charge to IEPE conditioning. DC powered for ease fo use in the field or laboratory. Earth/Floating configuration.

DATASHEET Download



9 Channel Charge Amplifier

9X-C

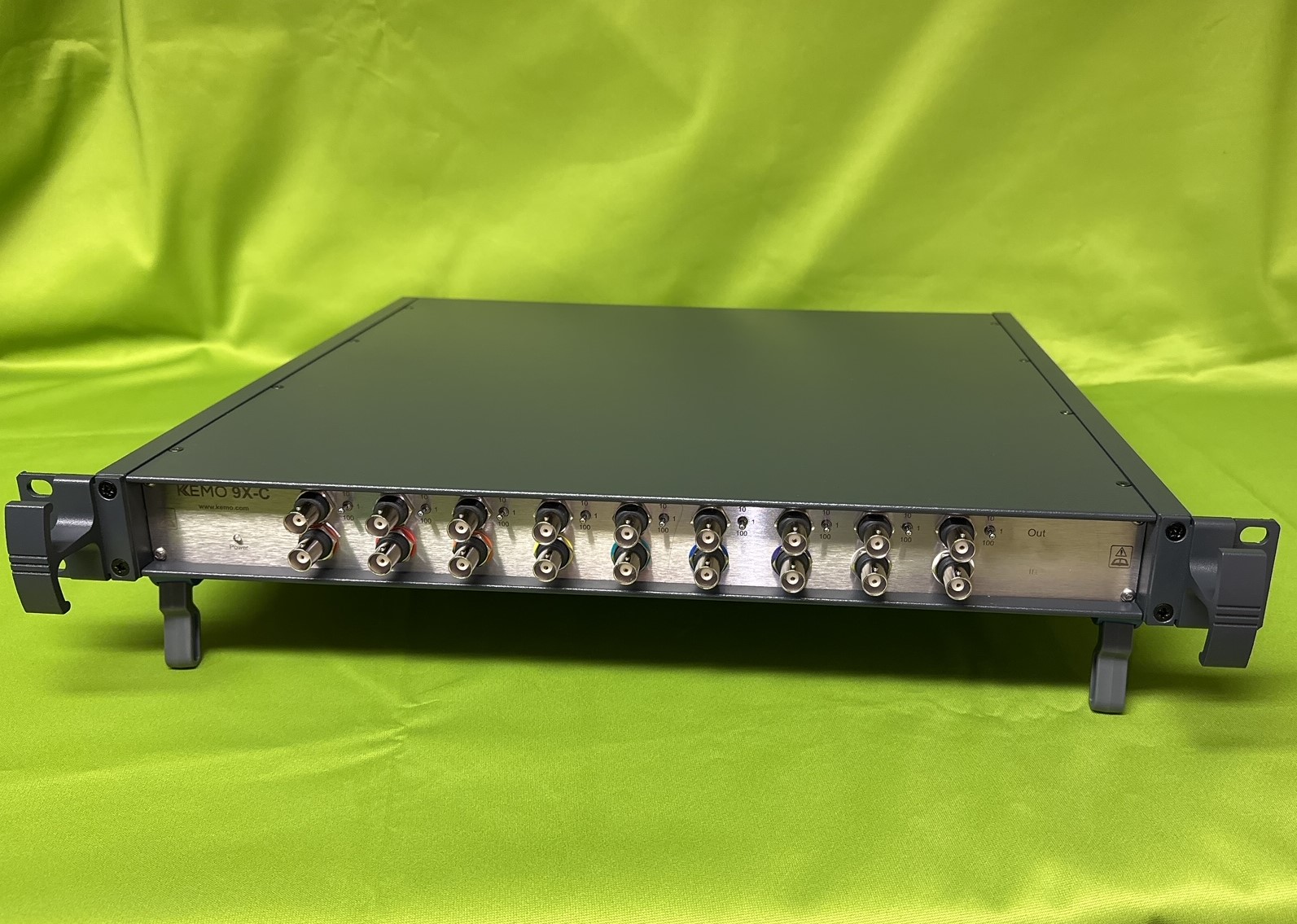

9 channel charge amplifier with x1, x10 and x100 gain individually selectable per channel. DC powered for ease fo use in the field or laboratory

DATASHEET Download



9 Channel Charge Amplifier

9X-CI

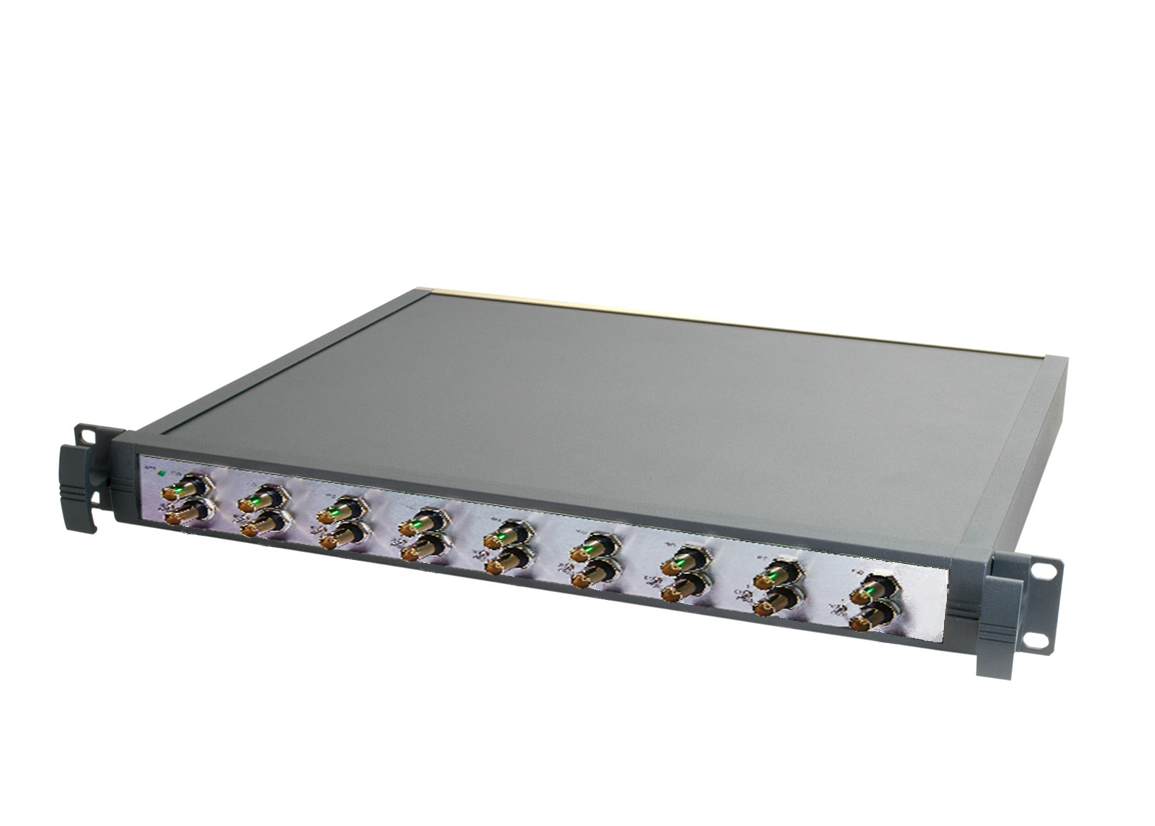

9 channel charge/IEPE amplifier with x1, x10 and x100 gain individually selectable per channel. Each channel can be switched from Charge to IEPE conditioning. DC powered for ease fo use in the field or laboratory. Earth/Floating configuration.

DATASHEET Download



C2V

C2V-0.1

Charge to Voltage inline converter

Sensitivity 0.1mV/pC

Gain x0.1

DATASHEET Download



C2V

C2V-1

Charge to Voltage inline converter

Sensitivity 1mV/pC

Gain x1

DATASHEET Download



C2V

C2V-10

Charge to Voltage inline converter

Sensitivity 10mV/pC

Gain x10

DATASHEET Download
