Exploring the Vibrant World of IEPE Accelerometer range: Unlocking Precision in Vibration Sensor

Dive into the realm of our IEPE Accelerometer range, the epitome of convenience in vibration measurement. Harnessing the power of Integral Electronics Piezoelectric (IEPE) technology, our piezoelectric accelerometer range comes equipped with integrated electronic amplifiers, seamlessly connecting to compatible Data Acquisition Systems (DAQ) while receiving IEPE power supply. From featherweight ultra-miniature devices weighing less than 0.5 grams to seismic sensors boasting 10V/g sensitivity, Kemo’s IEPE Accelerometer range caters to every need.

Triaxial IEPE Accelerometer within our arsenal boast remarkable attributes of low mass and high-frequency response, ensuring precision in every measurement. Should your application require a sensitivity beyond standard offerings, fret not; our customization options extend to nearly any sensitivity requirement.

But that’s not all—we’ve already expanded our IEPE Accelerometer vibration sensor lineup to include a unique range of ultra-miniature monaxial and triaxial accelerometers. And if you’re still searching for the perfect fit, reach out to explore our latest product availability.

But our offerings don’t stop there; delve into our array of Piezoelectric charge output devices, widening your choices in vibration sensor.

Looking for an IEPE signal conditioning unit? Explore our IEPE Conditioner product pages for a seamless integration experience.

At Kemo, we take pride in our continuous development efforts. Fuelled by the wealth of experience within our team and guided by our customers’ needs, we strive to deliver comprehensive, high-quality solutions. The addition of accelerometers to our repertoire marks a natural progression for our company, a testament to our substantial investments in R&D.



Monoaxial IEPE Accelerometer General Purpose

GV10S-T

10mV/g

±500g

5.8grams

11mm x 16mm

GV10S-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GV20S-T

20mV/g

±250g

6grams

11mm x 16mm

GV20S-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GV50S-T

50mV/g

±100g

6.5grams

11mm x 16mm

GV50S-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GV100S-T

100mV/g

±50g

6.9grams

11mm x 16mm

GV100S-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GV200S-T

200mV/g

±25g

14.8grams

13mm x 16mm

GV200S-T

0.5 to 6kHz (±10%)

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GV10T-T

10mV/g

±500g

5.8grams

11mm x 21mm

GV10T-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GV20T-T

20mV/g

±250g

6grams

11mm x 21mm

GV20T-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GV50T-T

50mV/g

±100g

6.5grams

11mm x 21mm

GV50T-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GV100T-T

100mV/g

±50g

6.9grams

11mm x 21mm

GV100T-T

1 to 8kHz (±10%)

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GV200T-T

200mV/g

±25g

14.8grams

13mm x 21mm

GV200T-T

0.5 to 6kHz (±10%)

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

Monoaxial Miniature IEPE Accelerometer

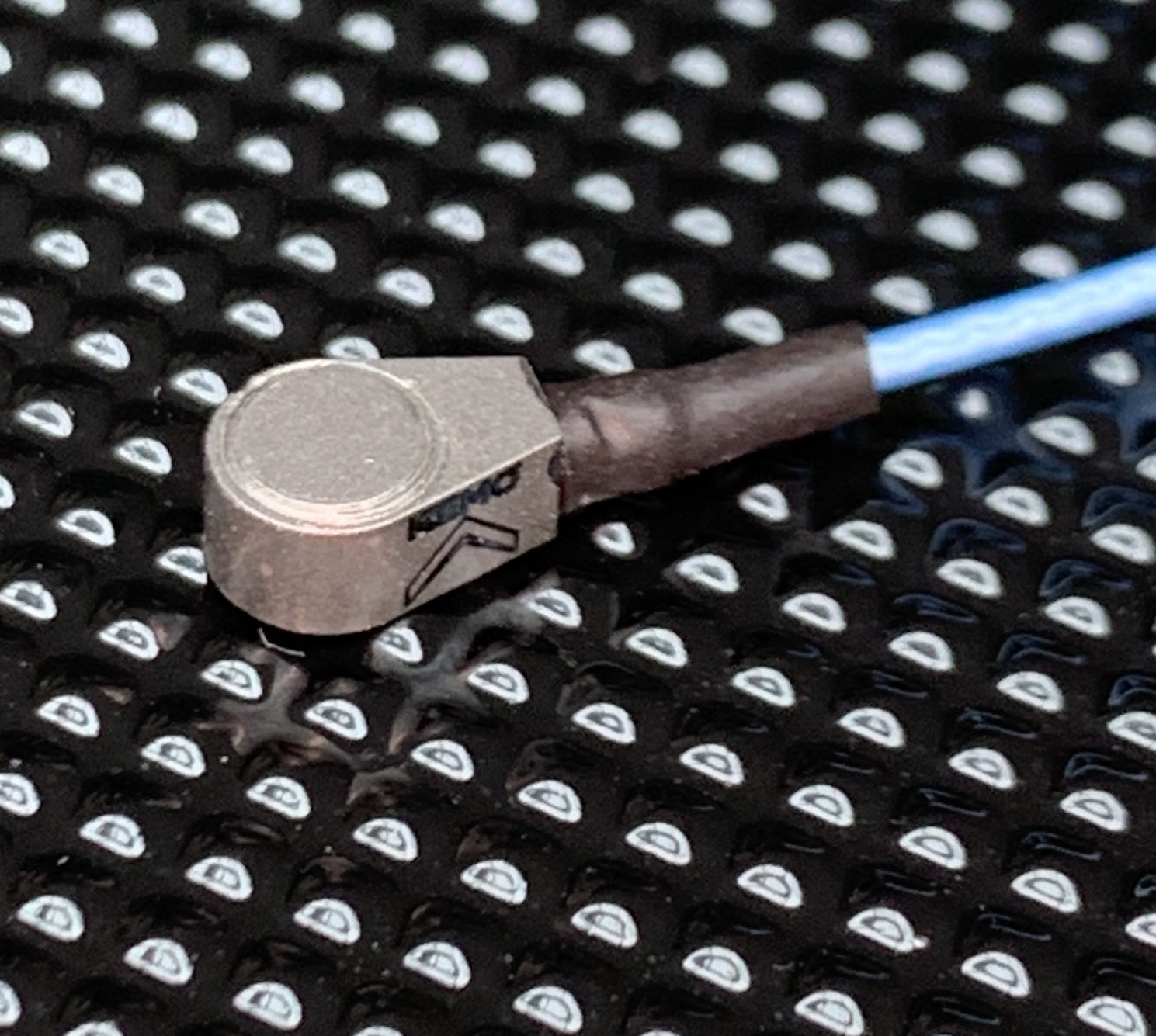

UV10S-A

10mV/g

±500g

1.2gram

10.95x6.95x5.55 (mm)

UV10S-A

1 to 10kHz (±10%)

Titanium

6-40 Microdot side connector

Adhesive flat base

UV100S-A

100mV/g

±50g

1.2gram

10.95x6.95x5.55 (mm)

UV100S-A

1 to 10kHz (±10%)

Titanium

6-40 Microdot side connector

Adhesive flat base

UV5S-A

5mV/g

±1000g

0.5gram

6x4.1x2.6 (mm)

UV5S-A

1 to 12kHz (±10%)

Titanium

Integral cable side exit

Adhesive flat base

MV10S-C

10mV/g

±500g

4.5grams

10x10x10 (mm)

MV10S-C

1 to 9kHz (±10%)

Titanium

10/32 Microdot side connector

5/40UNC tapped base

MV100S-C

100mV/g

±50g

4.5grams

10x10x10 (mm)

MV100S-C

1 to 9kHz (±10%)

Titanium

10/32 Microdot side connector

5/40UNC tapped base

SV10S-A

10mV/g

±500g

2.6grams

8.5 x 11 (mm)

SV10S-A

1 to 10kHz (±10%)

Titanium

6-40 Microdot side connector

Adhesive flat base

SV100S-A

100mV/g

±50g

2.6grams

8.5 x 11 (mm)

SV100S-A

1 to 10kHz (±10%)

Titanium

6-40 Microdot side connector

Adhesive flat base

SV10S-T

10mV/g

±500g

2.7grams

8.5 x 11 (mm)

SV10S-T

1 to 10kHz (±10%)

Titanium

M3.5 Microdot side connector

5/40UNC tapped base

SV100S-T

100mV/g

±50g

2.7grams

8.5 x 11 (mm)

SV100S-T

1 to 10kHz (±10%)

Titanium

M3.5 Microdot side connector

5/40UNC tapped base

SV10T-T

10mV/g

±500g

2.7grams

8.5 x 11 (mm)

SV10T-T

1 to 10kHz (±10%)

Titanium

M3.5 Microdot top connector

5/40UNC tapped base

SV100T-T

100mV/g

±50g

2.7grams

8.5 x 11 (mm)

SV100T-T

1 to 10kHz (±10%)

Titanium

M3.5 Microdot top connector

5/40UNC tapped base

SV200S-T

200mV/g

±25g

4.2grams

8.5 x 11 (mm)

SV200S-T

1 to 10kHz (±10%)

Titanium

M3.5 Microdot side connector

5/40UNC tapped base

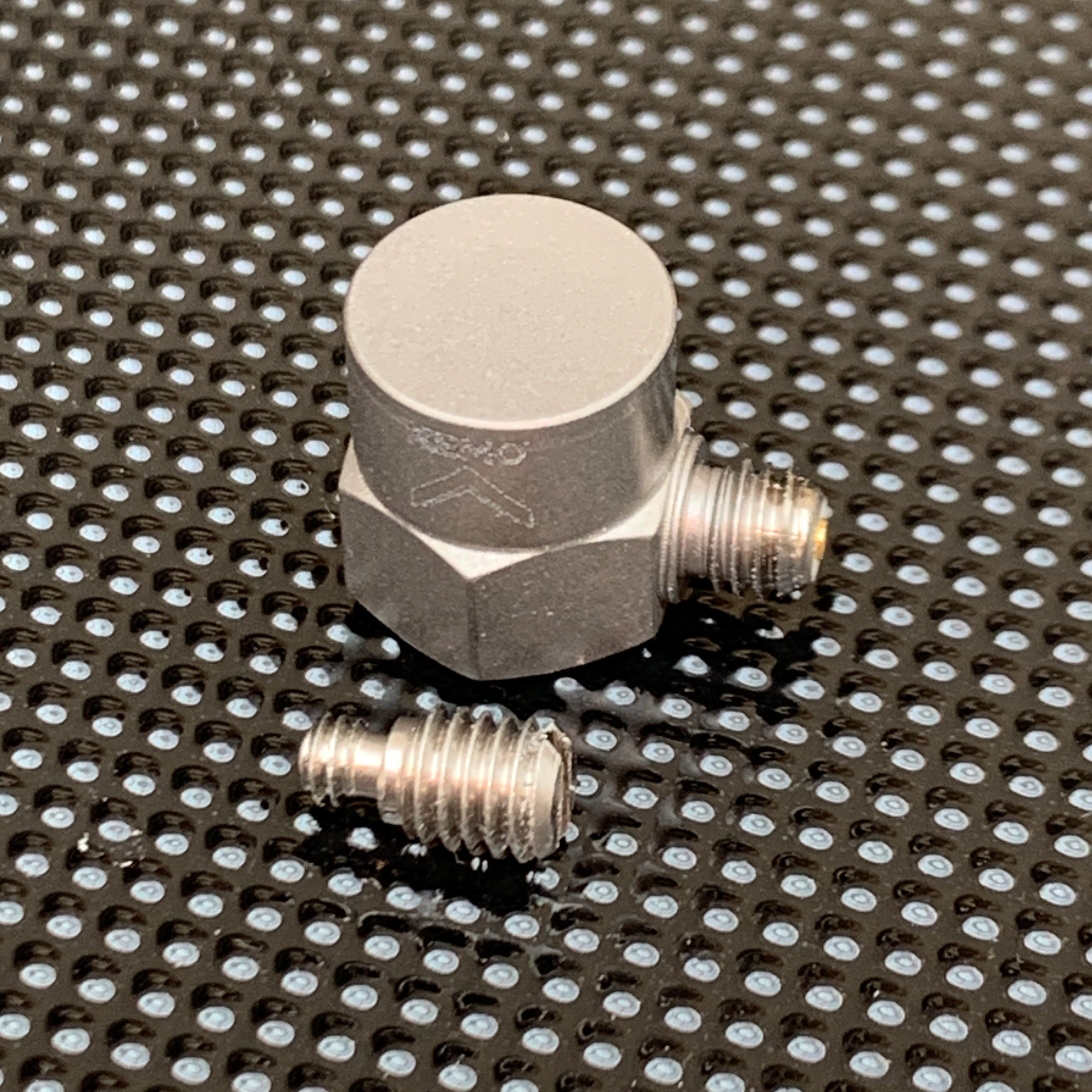

MV10S-T

10mV/g

±500g

3.9grams

11 x 13 (mm)

MV10S-T

1 to 10kHz (±10%)

Titanium

10/32UNF Microdot side connector

5/40UNC tapped base

MV100S-T

100mV/g

±50g

3.9grams

11 x 13 (mm)

MV100S-T

1 to 10kHz (±10%)

Titanium

10/32UNF Microdot side connector

5/40UNC tapped base

MV10S-A

10mV/g

±500g

3.8grams

11 x 13 (mm)

MV10S-A

1 to 10kHz (±10%)

Titanium

10/32UNF Microdot side connector

Flat adhesive base

MV100S-A

100mV/g

±50g

3.8grams

11 x 13 (mm)

MV100S-A

1 to 10kHz (±10%)

Titanium

10/32UNF Microdot side connector

Flat adhesive base

MV10T-T

10mV/g

±500g

4grams

11 x 13 (mm)

MV10T-T

1 to 10kHz (±10%)

Titanium

10/32UNF Microdot Top connector

5/40UNC tapped base

Triaxial IEPE Accelerometer

SVT5I-A

5mV/g

±1000g

1gram

6.35x6.35x6.35 (mm)

SVT5I-A

(Y&Z Axes) 1 to 10kHz (±10%)

(X Axis) 1 to 8kHz(±10%)

Titanium

1/4-28UNF connector on integral cable

Flat adhesive base

SVT10S-T

10mV/g

±500g

3.9grams

10x10x10 (mm)

SVT10S-T

(Y & Z Axis) 1 to 8kHz (±10%)

(X Axis) 2 to 7kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

5/40UNC tapped base

SVT100S-T

100mV/g

±50g

5.8grams

11.5x11.5x11.5 (mm)

SVT100S-T

(Y & Z Axis) 1 to 8kHz (±10%)

(X Axis) 2 to 7kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

5/40UNC tapped base

MVT10S-T

10mV/g

±500g

4.2grams

10x10x10 (mm)

MVT10S-T

(Y & Z Axis) 1 to 8.5kHz (±10%)

(X Axis) 1 to 7kHz (±10%)

Titanium

8/36UNF 4 pin side connector

5/40UNC tapped base

MVT100S-T

100mV/g

±50g

6grams

11.5x11.5x11.5 (mm)

MVT100S-T

(Y & Z Axis) 1 to 8kHz (±10%)

(X Axis) 2 to 7kHz (±10%)

Titanium

8/36UNF 4 pin side connector

5/40UNC tapped base

MVT200S-T

200mV/g

±25g

10grams

11.5x11.5x11.5 (mm)

MVT200S-T

(Y & Z Axis) 2 to 7kHz (±10%)

(X Axis) 2 to 6kHz (±10%)

Titanium

8/36UNF 4 pin side connector

5/40UNC tapped base

GVT10S-T

10mV/g

±500g

8.5gram

15x15x10 (mm)

GVT10S-T

(Z) 1 to 8kHz (±10%)

(X,Y) 1 to 7kHz (±10%)

1/4-28UNF 4 pin side connector

10/32UNF Tapped base

GVT100S-TL

100mV/g

±50g

13gram

15x15x10 (mm)

GVT100S-TL

(Y&Z) 1 to 9kHz (±10%)

(X) 1 to 8kHz (±10%)

1/4-28UNF 4 pin side connector

10/32UNF Tapped base

GVT10S-TC

10mV/g

±500g

11gram

14x14x14 (mm)

GVT10S-TC

(Y&Z) 1 to 8kHz (±10%)

(X) 1 to 7kHz (±10%)

1/4-28UNF 4 pin side connector

10/32UNF tapped base

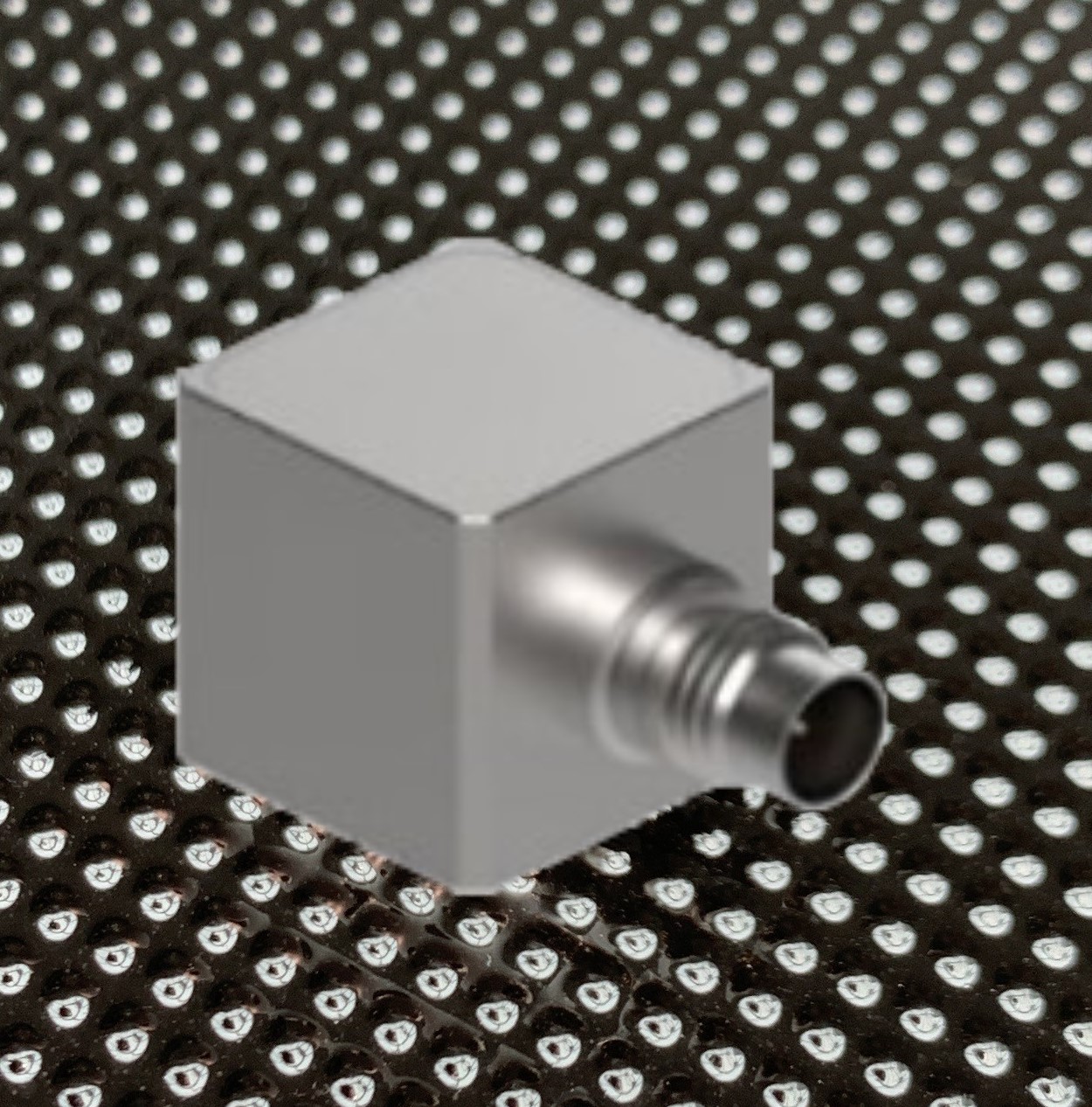

GVT100S-T

100mV/g

±50g

11gram

14x14x14 (mm)

GVT100S-T

(Y&Z) 1 to 8kHz (±10%)

(X) 1 to 7kHz (±10%)

1/4-28UNF 4 pin side connector

10/32UNF tapped base

GVT10S-H

10mV/g

±500g

8gram

15x15x10 (mm)

GVT10S-H

(Z) 1 to 10kHz (±10%)

(X,Y) 1 to 8kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

Through hole mounting

GVT20S-H

20mV/g

±250g

8gram

15x15x10 (mm)

GVT20S-H

(Z) 1 to 10kHz (±10%)

(X,Y) 1 to 8kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

Through hole mounting

GVT50S-H

100mV/g

±100g

12gram

16x16x11 (mm)

GVT50S-H

(Z) 1 to 10kHz (±10%)

(X,Y) 1 to 8kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

Through hole mounting

GVT100S-H

100mV/g

±50g

12gram

16x16x11 (mm)

GVT100S-H

(Z) 1 to 10kHz (±10%)

(X,Y) 1 to 8kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

Through hole mounting

GVT200S-H

200mV/g

±25g

12gram

16x16x11 (mm)

GVT200S-H

(Z) 1 to 8kHz (±10%)

(X,Y) 1 to 7kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

Through hole mounting

HVT1KS-T

1000mV/g

±5g

40gram

20x20x20 (mm)

HVT1KS-T

1 to 4kHz (±10%)

Titanium

1/4-28UNF 4 pin side connector

10/32UNF tapped base

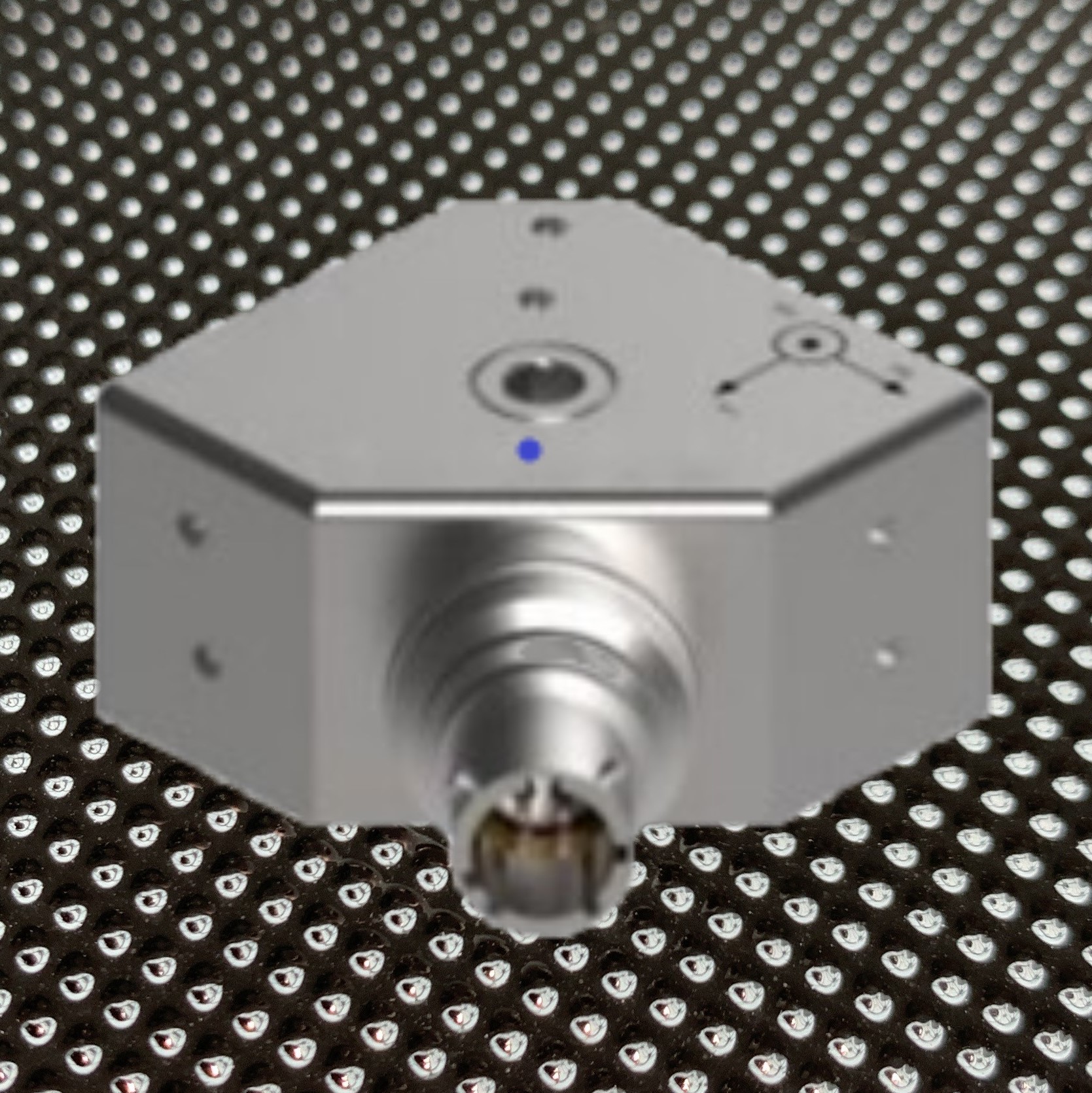

HVT1KS-H

1000mV/g

±5g

158gram

45x45x21 (mm)

HVT1KS-H

(Z)0.4 to 2200Hz (±10%)

(Y,X) 0.5 to 1900Hz (±10%)

Titanium

1/4-28UNF 4 pin side connector

Through hole mounting

High Sensitivity IEPE Accelerometer

GV500S-T

500mV/g

±10g

22.3gram

16x21 (mm)

GV500S-T

1 to 5kHz (±10%)

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GV500T-T

500mV/g

±10g

23gram

16x26 (mm)

GV500T-T

1 to 5kHz (±10%)

Titanium

10/32UNF top connector

10/32UNF tapped base

HV1KM-T

1000mV/g

±5g

68gram

19x35 (mm)

HV1KM-T

0.2 to 3kHz (±10%)

Stainless Steel

10/32UNF top connector

10/32UNF tapped base

HV1KT-T

1000mV/g

±5g

200gram

33x58 (mm)

HV1KT-T

0.3 to 2kHz (±10%)

Titanium

MIL-C-5015 top connector

M6 tapped base

HV2KT-T

2000mV/g

±2.5g

200gram

33x58 (mm)

HV2KT-T

0.3 to 800Hz (±10%)

Titanium

MIL-C-5015 top connector

M6 tapped base

HV5KT-T

5000mV/g

±1g

200grams

33x58 (mm)

HV5KT-T

0.3 to 800Hz (±10%)

Titanium

MIL-C-5015 top connector

M6 tapped base

HV10KT-T

10000mV/g

±0.5g

200grams

33x58 (mm)

HV10KT-T

0.3 to 800Hz (±10%)

Titanium

MIL-C-5015 top connector

M6 tapped base

Shock Monoaxial IEPE Accelerometer

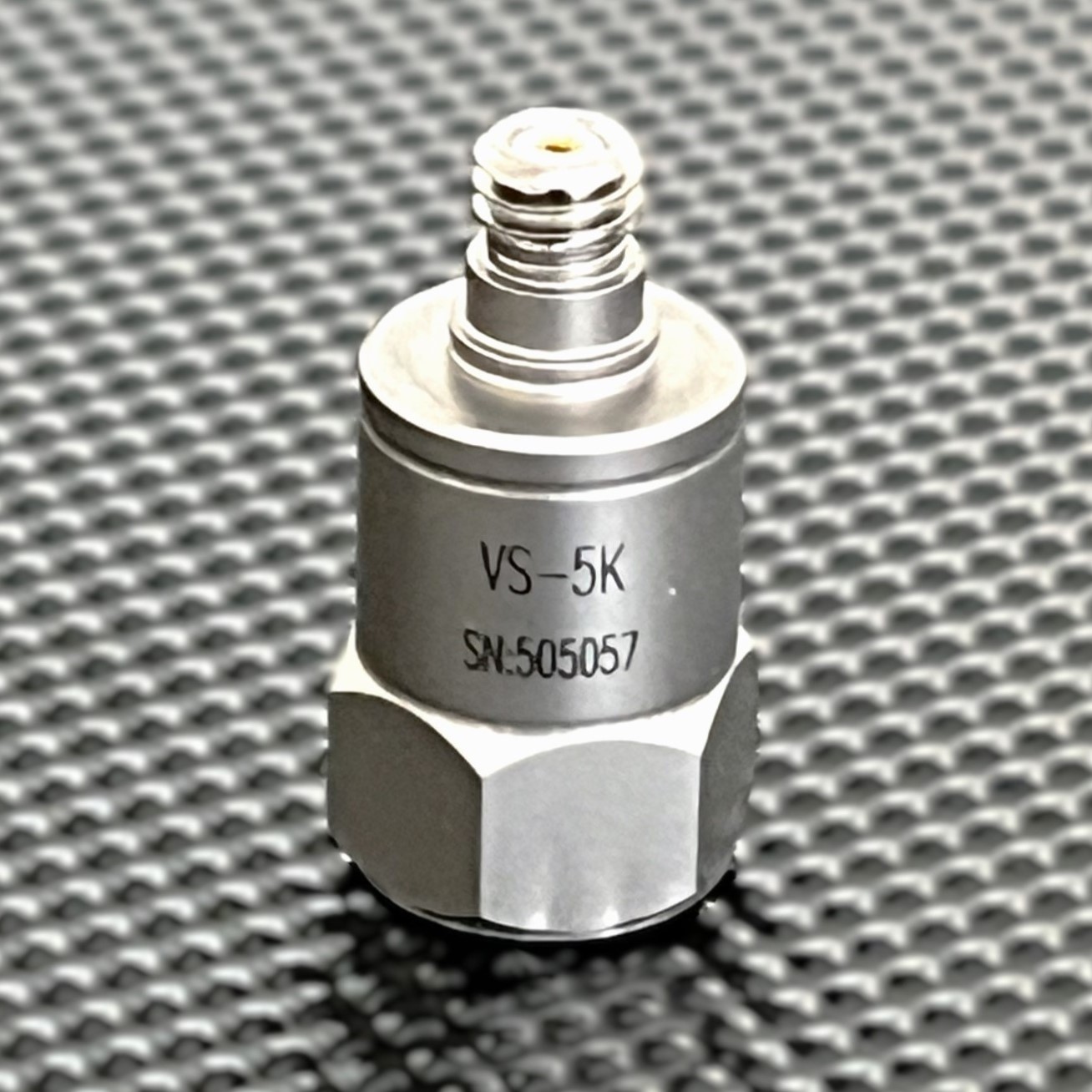

VS-5K

±5000g

1mV/g

6grams

12.7x16 (mm)

VS-5K

1 to 9000Hz (±10%)

Titanium

10/32UNF Top connector

10/32UNF tapped base

VS-10K

±10000g

0.5mV/g

6grams

12.7x16 (mm)

VS-10K

1 to 9000Hz (±10%)

Titanium

10/32UNF Top connector

10/32UNF tapped base

VS-20K

±20000g

0.25mV/g

5.5grams

10.8x16.7 (mm)

VS-20K

1 to 10000Hz (±10%)

Titanium

0.5m Integral cable

M6 Integral stud

VS-50K

±50000g

0.1mV/g

5.5grams

10.8x16.7 (mm)

VS-50K

1 to 10000Hz (±10%)

Titanium

0.5m Integral cable

M6 Integral stud

VS-100K

±100000g

0.05 mV/g

5.5grams

10.8x16.7 (mm)

VS-100K

1 to 10000Hz (±10%)

Titanium

0.5m Integral cable

M6 Integral stud

Triaxial Shock IEPE Accelerometer

VST-5K

±5000g

1mV/g

23.5grams

25x25x25 (mm)

VST-5K

1 to 10000Hz (±10%)

Titanium

Side entry integral cable

∅6mm through hole

VST-10K

±10000g

0.5mV/g

23.5grams

25x25x25 (mm)

VST-10K

1 to 10000Hz (±10%)

Titanium

Side entry integral cable

∅6mm through hole

VST-20K

±20000g

0.25mV/g

23.5grams

25x25x25 (mm)

VST-20K

1 to 10000Hz (±10%)

Titanium

Side entry integral cable

∅6mm through hole
