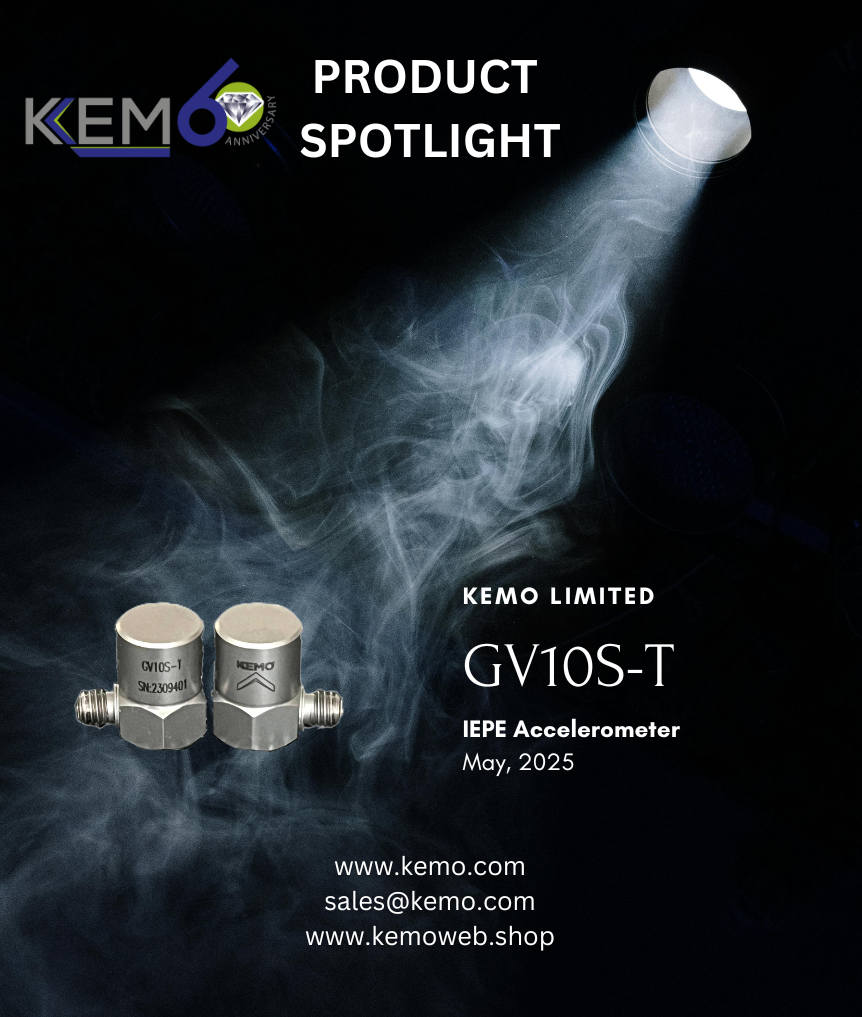

The GV10S-T General Purpose IEPE Accelerometer is one of our most popular models and is one of the smallest and lightest low cost general purpose accelerometers available. Perfect for a wide variety of vibration applications from Vibration shaker testing, through to general vibration measurements and monitoring.
Key Features:
• Shear Design with PZT-5 Ceramic: Known for accuracy, durability and high performance.
• Sensitivity: 10mV/g (1.02mV/(m/s²)), providing accurate measurements
• Wide Measurement Range: ±4900m/s² (±500g), capable of handling extreme conditions and shock measurements
• High Frequency Range: Operates from 1 to 8000 Hz, covering a broad spectrum of vibration frequencies.
• Rugged Design: Titanium housing with welded construction for reliable performance in harsh environments.
• Mounting: 10-32UNF tapped base for stud mounting, ensuring secure installation.
Specifications at a Glance:
• Operating Temperature: -55°C to +125°C (-67°F to +257°F)
• Overload Limit: ±49000(m/s²)pk (±5000gpk)
• Output Bias Voltage: 11VDC ± 1.5VDC
• Electrical Connection: 10-32UNF microdot
• Weight: 5.8g (0.204oz)
The GV10S-T is perfect for use in vibration shaker testing and applications requiring high-frequency range and precision in harsh environments. Whether you’re in research, product development, or quality control, this accelerometer is designed to meet your needs.
Stay tuned for more updates!
